Secure Web Gateway

The Secure Web Gateway (FreeSense-pkg-WebGateway 2.0.5) is an outbound web proxy built on Squid 7 from the FreeBSD ports tree. FreeSense generates the whole Squid configuration from its own settings model: listeners, HTTPS handling, access policy, identity, threat feeds, ICAP, caching, bandwidth profiles and a parent proxy. Every change is parse-tested by Squid before it goes live and rolled back if Squid does not stay up. It replaces the retired Squid and SquidGuard packages.

The optional companion Web Gateway Local Antivirus (FreeSense-pkg-WebGateway-AV 2.0.1) installs ClamAV, c-icap, c-icap-modules and squidclamav so the gateway can scan web traffic locally.

Use the Web Gateway when you need an enforced, logged path for outbound web traffic from internal networks: a domain policy, user authentication, malware scanning or a parent proxy. For inbound publishing and TLS termination of your own servers, use HAProxy instead.

Install

1. Open System → Package Manager → Available Packages.
2. Install Secure Web Gateway (category Security, resource profile Intensive).
3. Optional: install Web Gateway Local Antivirus (resource profile Intensive). It requires the gateway package and adds the scanner components; scanning stays off until you turn it on.

The gateway is disabled after installation and defaults to tunnel-only HTTPS.

Architecture: amd64 and arm64. On arm64 (Stable from 1.1.1, and Development 1.2), the gateway is available but the Local Antivirus companion is not built, because ClamAV still needs a Rust source build under emulation.

Where to find it

Menu path	Page
Services → Web Gateway	Overview and all settings tabs (menu group Proxy)
Status → Web Gateway	Service control, listeners, permitted networks, recent access log (group Security)
Services → Web Gateway Threat Protection	Added by the antivirus companion; opens the Threat protection tab

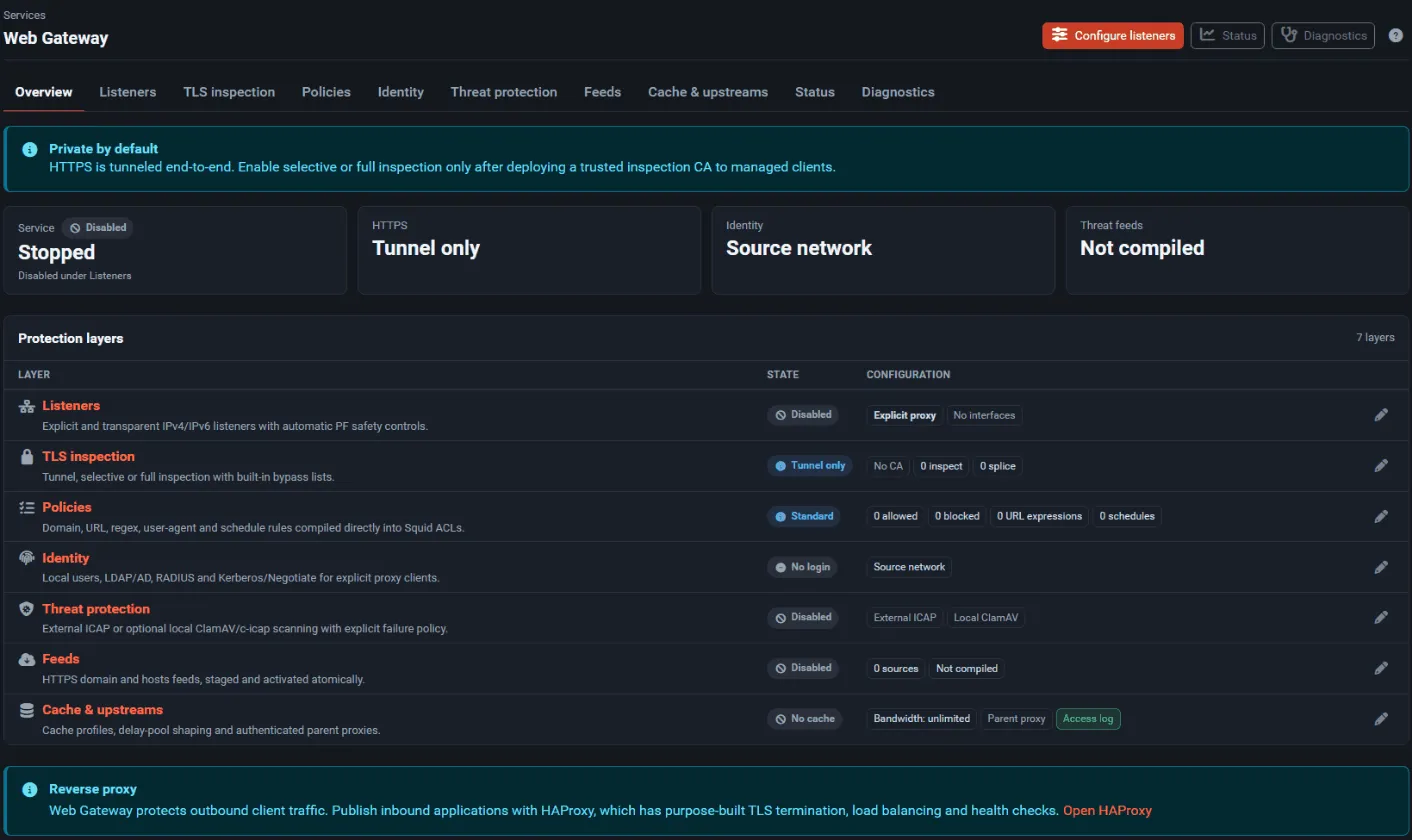

Tabs: Overview, Listeners, TLS inspection, Policies, Identity, Threat protection, Feeds, Cache & upstreams, Status, Diagnostics.

First-time setup

Start with an explicit proxy and tunnel-only HTTPS. It needs no certificates on clients and is the easiest deployment to roll back.

1. Open Services → Web Gateway → Listeners.
2. Under Clients, select the internal interfaces whose clients may use the proxy. WAN and interfaces with a gateway are never offered.
3. Under Listener modes, enable Explicit proxy and keep Local port 3128.
4. Tick Enable under Gateway service and select Save and apply.
5. On Policies, add a few test entries under Blocked, save, and use Simulate a decision to check the result for a host name.
6. Download the PAC file from Listeners → PAC file and deploy it to a test group of managed clients, or set the proxy (<interface address>:3128) in the client.
7. Browse from a test client and watch Status → Web Gateway → Recent access log.
8. Only after this works, consider TLS inspection, transparent interception or the antivirus scanner (see below).

Adding TLS inspection

1. Create a dedicated internal CA in System → Certificates (the CA must have its private key).
2. Export its public certificate (the Export CA certificate button on the TLS inspection tab) and deploy it to managed clients only.
3. On TLS inspection, choose Selective inspection, select the Signing CA, tick the Acknowledgement, and list the domains to inspect under Inspect in selective mode.
4. Add certificate-pinned or mutual-TLS applications to Always splice.
5. Move to Full inspection or Transparent HTTPS only after testing.

Decrypting TLS

Inspection changes the trust boundary for every inspected site. Use it only on devices you manage, after checking the privacy and employment rules that apply to you. Never install the inspection CA on unmanaged devices.

Settings reference

Listeners

Field	What it does	Default
Enable	Starts the gateway with the saved settings. Interception rules exist only while it is enabled (and, with fail-open, running).	Off
HA sync	Sends the gateway configuration to the HA peer through XMLRPC sync. Compiled feeds are rebuilt locally; CA private keys are not copied by this package.	Off
Client interfaces	Internal interfaces whose networks may use the gateway.	None
Additional client networks	Routed or VPN networks allowed to use the explicit proxy. Firewall pass rules are still required.	Empty
Explicit proxy + Local port	Squid listens on the selected interfaces’ addresses.	On, 3128
Transparent HTTP + Local port	PF redirects TCP/80 from the selected interfaces to Squid on loopback.	Off, 3129
Transparent HTTPS + Local port	PF redirects TCP/443; requires selective or full inspection.	Off, 3130
HTTP/3 and QUIC	Allow UDP/443 or Block UDP/443 to force TCP fallback (transparent HTTPS only).	Allow
Proxy failure	Fail open removes redirects when Squid is down; Fail closed keeps them.	Fail open
PAC file	Download a PAC file for the explicit proxy. FreeSense does not publish an unauthenticated WPAD service.	—
Exemptions: Source addresses	Sources that are never redirected.	Empty
Exemptions: Destination addresses	Extra destinations that are never redirected.	Empty

Every enabled listener must use its own port.

TLS inspection

Field	What it does	Default
Mode	Tunnel only (CONNECT stays encrypted; host, SNI and IP policy only), Selective inspection, Full inspection.	Tunnel only
Signing CA	Internal CA with private key used to sign generated certificates. It is registered as in use, so Certificate Manager will not delete it.	None
Acknowledgement	Required for selective and full inspection.	Off
Inspect in selective mode	Domains to decrypt; a leading dot includes subdomains.	Empty
Always splice	Domains never decrypted, added to a built-in list (.apple.com, .icloud.com, .microsoftonline.com, .windowsupdate.com, .mozilla.org, .googleapis.com, .gstatic.com, .letsencrypt.org, .digicert.com, .globalsign.com).	Empty

Policies

Field	What it does	Default
Policy	Standard access (allow unless blocked) or Restricted allowlist (deny unless allowed).	Standard access
Always allowed	Domains that are always allowed; checked first.	Empty
Blocked	Domains blocked for HTTP and CONNECT/SNI without decryption. Active feed domains are merged in.	Empty
Blocked URL expressions	Regular expressions on the full URL.	Empty
Blocked user agents	Regular expressions on the User-Agent header.	Empty
Blocked response types	Regular expressions on the response MIME type.	Empty
Transfer limits	Maximum upload / Maximum download in MiB; 0 is unlimited.	0 / 0
YouTube	Adds the YouTube Restricted Mode header.	Off
Blocked schedules	Time windows in which matching traffic is blocked; format below. Matching traffic is blocked.	Empty

Each Blocked schedules line is a name, the days (S M T W H F A) and a time range, separated by vertical bars:

school|MTWHF|08:00-15:00

URL paths, MIME types, transfer limits, the YouTube header and response scanning only see HTTPS traffic for inspected destinations. Domain allow and block rules work without inspection.

Identity

Field	What it does	Default
Provider	Source network (no login), Local users (enabled, non-expired users of the local database), LDAP / Active Directory, RADIUS, Kerberos / Negotiate. Authentication requires an explicit listener.	Source network
Server	LDAP or RADIUS server from System → User Manager → Authentication Servers.	—
Realm	Text shown in the browser login prompt.	FreeSense Web Gateway
Credential TTL	Minutes before a client must authenticate again (1–1440).	60
Service principal / Keytab path	Kerberos settings. NTLM fallback is not supported.	— / /usr/local/etc/squid/freesense.keytab

Threat protection

Field	What it does	Default
External ICAP: Enable	Send requests and responses to an external scanner or DLP service.	Off
REQMOD service URL / RESPMOD service URL	Complete icap:// or icaps:// URLs, no credentials.	Empty
If the service fails	Bypass and alert or Block eligible traffic.	Bypass and alert
Scanning (local)	Scan with ClamAV through c-icap (icap://127.0.0.1:1344/squidclamav). Requires the companion package. When on, it takes the place of the external ICAP services.	Off
Maximum scanned object	MiB, written into the managed block of squidclamav.conf.	100
If the scanner fails	Block (recommended) or Bypass and alert.	Block

Feeds

Field	What it does	Default
Scheduled updates	Hourly cron job (minute 17) that updates feeds when the interval has passed.	Off
HTTPS feed URLs	Plain domain or hosts-format lists, one URL per line. No credentials in URLs.	Empty
Limits	Interval (1–720 hours), Maximum download (MiB), Maximum entries.	24 h, 50 MiB, 1,000,000
Update now	Compile the feeds immediately.	—

Downloads are staged, normalized and deduplicated. If any feed fails or exceeds a limit, the last-known-good database stays active. FreeSense ships no feeds; choose providers yourself.

Cache & upstreams

Field	What it does	Default
Cache: Profile	Disabled, Metadata / small objects (rock store), Download-oriented (ufs store).	Disabled
Sizes	Memory, disk and maximum object size in MiB.	128 / 1024 / 64
Bandwidth: Profile	Unlimited, Low-latency fairness, Balanced, Bulk transfer (Squid delay pools).	Unlimited
Forwarding headers	Remove X-Forwarded-For and Via.	On
Access log	Keep /var/log/squid/access.log.	On
Reports	Anonymize client identity: the access log records no client address or user name, and query strings are stripped.	On
Parent proxy	Host, port, username and password of an upstream proxy; Fallback prevents direct connections. The stored password is never shown again.	Off
Expert Squid directives	Extra directives, parser-tested. Directives that would replace listeners, includes, helpers, PID handling or the final access rule are refused.	Empty

Firewall rules and interfaces

• Explicit proxy: clients must reach the interface address on TCP 3128. The default LAN rule allows it; add a pass rule on other internal interfaces and for Additional client networks.
• Transparent HTTP/HTTPS: the package adds the NAT redirects itself, on the selected interfaces only. Traffic to private address ranges (RFC 1918, loopback, link-local, ULA), to client interface networks and to exempt destinations is not redirected.
• QUIC blocking: when selected, a block quick ... port 443 UDP rule labelled “FreeSense Web Gateway QUIC fallback” is added on the selected interfaces.
• With Fail open, a watchdog (freesense_webgateway_watchdog) checks Squid every 15 seconds and reloads the firewall when Squid goes up or down, so redirects disappear while Squid is down.

Service, logs, and status

Item	Value
Service	freesense_webgateway (Squid), rc script /usr/local/etc/rc.d/freesense_webgateway
Watchdog	freesense_webgateway_watchdog, started only with a transparent listener
Antivirus services	clamav_freshclam, clamav_clamd, c-icap (started and stopped by the gateway)
Generated configuration	/usr/local/etc/squid/freesense.conf and /usr/local/etc/squid/freesense.d/
State	/var/db/freesense-webgateway/ (feeds, previous configuration for rollback)
Logs	/var/log/squid/access.log, /var/log/squid/cache.log; activation errors go to the system log as “Web Gateway: …”, and the watchdog logs with tag freesense-webgateway
Feed updater	/usr/local/sbin/freesense-webgateway-feed-update [--force]

Status → Web Gateway offers Start, Restart, Stop and Emergency disable. Emergency disable turns the gateway off in the configuration, stops the watchdog and Squid, and reloads the firewall so interception rules are removed. The Diagnostics tab shows the Squid configuration test result, the detected Squid version (7.x required) and the required helpers; it never writes files unless you select the confirmed regenerate action.

Upgrade, backup, and removal

• Settings live in config.xml under installedpackages/webgateway and are part of a normal backup. Generated files are rebuilt from them.
• Removing the gateway disables it, stops Squid, the watchdog and the antivirus services, removes the feed cron job, reloads the firewall, and deletes generated files that can contain secrets (inspection CA key copy, local user file, RADIUS and LDAP secrets, and the generated configuration with parent-proxy credentials).
• Removing the antivirus companion turns local scanning off, saves that, reapplies the gateway and removes its Service squidclamav line from c-icap.conf.

Troubleshooting

Symptom	Cause and fix
The gateway is stopped after a reboot	Known issue in 1.1.0: seen once after an upgrade-test reboot; the cause is not yet known. Start it from Status → Web Gateway.
Every request fails after enabling local scanning	Fixed in 1.1: squidclamav now uses the clamd socket from clamd.conf, Squid sends the client IP over ICAP, and clamd starts as soon as freshclam has the signatures. On a fresh enable, wait for the first signature download.
Infected downloads redirect to proxy.domain.dom	Fixed in 1.1: the placeholder redirect is commented out and squidclamav serves its own block page.
Save and apply reports that activation failed	Squid rejected the configuration or did not stay running. The previous files and settings were restored. Check Diagnostics and /var/log/squid/cache.log.
HTTPS policy for paths or MIME types has no effect	Those rules need inspection of that destination.
A banking or pinned application breaks under inspection	Add its domains to Always splice.
Clients on a VPN or routed network are denied	Add the network to Additional client networks and allow it in the firewall.

Changes in FreeSense 1.1

• The Secure Web Gateway and the Local Antivirus companion are part of the supported 1.1 package set (in 1.0 the gateway was documented for the Development line only).
• Local antivirus scanning works: clamd socket, signature start-up, ICAP client IP and the block page were fixed (9d03e58).
• WebUI rebuilt in the FreeSense style (85ef6bb), with menu groups (4ae11df).
• The parent-proxy password is never printed back to the page, and Diagnostics no longer writes files when opened; regeneration is a confirmed action (5768939).
